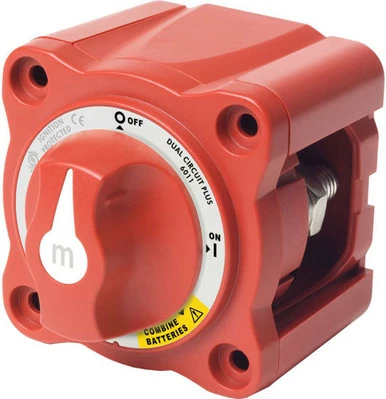

Blue Sea Systems Blue Sea 6011 M-Series (Mini) Battery Switch Dual Circuit Plus

BLUE SEA 6011 BATTERY SWITCH

6011
m-Series (Mini) Battery Switch

Dual Circuit Plus™;

• Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery
• The “Combine Batteries” function offers the ability to combine the two battery banks in the event of a low Start battery

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

MPN: BS-6011 UPC: 632085060114
